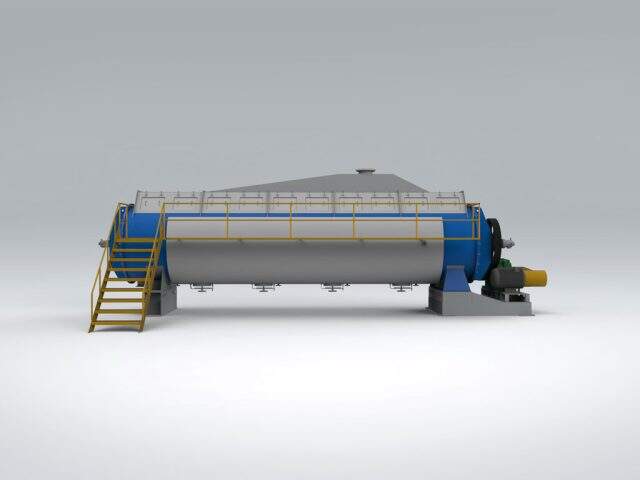

Sludge Dryer

Our disc sludge dryer is specifically designed for the drying of sludge in the wastewater treatment industry. The machine’s unique design enables it to effectively dry sludge while maintaining low energy consumption and high efficiency.

Application

The disc sludge dryer is widely used in the wastewater treatment industry, providing a cost-effective solution for sludge drying. It can handle a variety of sludge types and is particularly effective in treating sludge with high water content.

Working Princple

微信图片_20220425141650 The sludge is evenly distributed onto the drying disk by the feeding system. The disc rotates at a constant speed, generating a centrifugal force that drives the sludge towards the outer edge of the disc. The sludge is then evenly distributed on the disc’s surface, exposed to high temperature and low pressure conditions, which accelerates the drying process. The dried sludge is then scraped off the disc’s surface by a scraper and discharged from the machine.

Features

The disc dryer has several distinctive features.
  • It uses a compact structure to effectively save space.
  • The use of a multi-layer drying disc ensures a large drying area, improving the drying efficiency.
  • The machine is designed with a unique self-cleaning function, which reduces blockage and maintenance requirements.
  • The disc dryer has an automatic temperature control system that ensures the drying process is both efficient and safe.

Model

MODEL DISC DIA EFFECTIVE HEATING AREA DRYER DIMENSIONS(mm) MOTOR POWER WEIGHT Sludge Treatment Capacity
QY-SG-50 1200mm 96m2 7600x2000x2850 37kw 19Ton 1.2(Mt/h)
QY-SG-80 1450mm 158m2 8300x2500x3100 45kw 23Ton 2(Mt/h)
QY-SG-100 1450mm 198m2 10000x2500x3100 55kw 27Ton 2.5(Mt/h)
QY-SG-150 1700mm 261m2 11200x2500x3200 75kw 37Ton 3.3(Mt/h)
QY-SG-200 1950mm 350m2 11800x3000x3500 110kw 45Ton 4.4(Mt/h)
Material options according to different raw material:MS, SS304, 316L, DSS

Engineering case

sludge treatment

Download

Get the document with detailed technical
