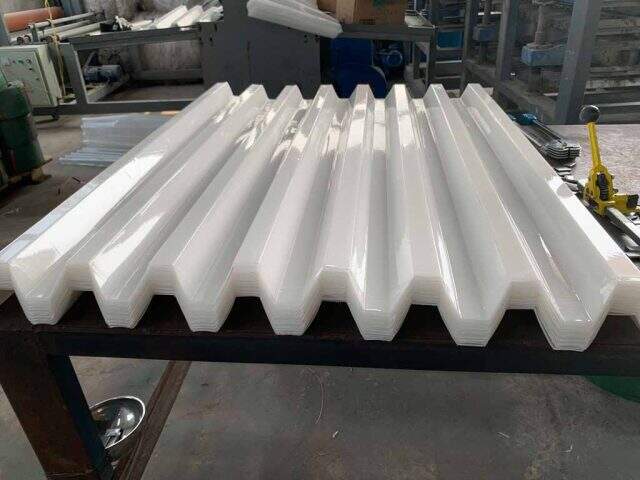

The sedimentation process in wastewater treatment is a physical process that relies on gravity to settle and remove suspended solids. Lamella Clarifier can increase the settling capacity of a clarifier by reducing the vertical distance that floc must settle before agglomerating to form larger particles. Inclined tube packing Tubular channels inclined at a 60° angle and adjacent to each other, which combine to create a larger effective settling area.
This provides a particle settling depth that is significantly smaller than that of conventional clarifiers, thereby reducing settling time. Inclined tube packing captures settleable fine flocs escaping from the clarification zone below the tube settler and allows larger flocs to enter the bottom of the tank in a more settleable form. The channels of the lamella clarifier collect the solids into a dense mass, which facilitates the sliding of the solids from the tube channels.
| D(mm) | Wall thickness (mm) | PCS/m2 | Specific Surface Area (m2/m3) | Slope Angel | Width (m) | Length (m) | Material | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 35 | D35 | D50 | D80 | 40 | 109 | 60o | 1 | 0.5-1.5 | PP/PVC/FRP/ SS304 | |
| 50 | 0.35 | 0.4 | 0.6 | 30 | 87 | |||||
| 80 | 0.4 | 0.45 | 0.7 | 20 | 50 | |||||
| 0.4 | 0.5 | 0.8 | ||||||||
| 0.5 | 0.6 | 0.9 | ||||||||
| 0.6 | 0.7 | 1.0 | ||||||||
| 0.7 | 0.8 | 1.1 | ||||||||
| 0.8 | 0.9 | 1.2 | ||||||||
| 1.0 | ||||||||||
