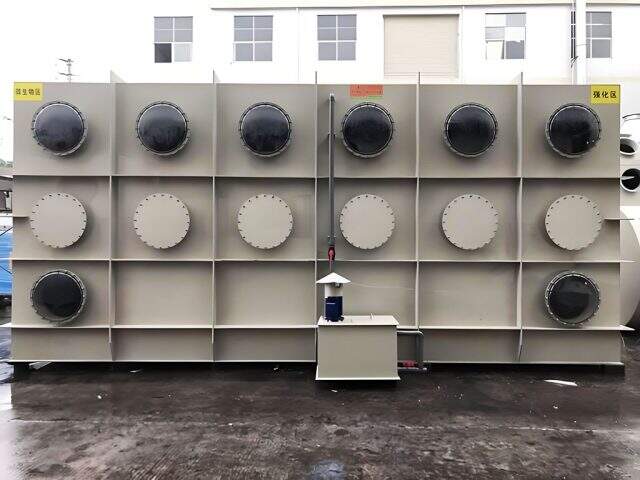

Food & Beverage Odor Control Biofilter

The BIOETP Series Biofilter specializes in treating malodorous gases from food processing, utilizing hybrid biofiltration + trickling technology to achieve ≥96% removal efficiency for H₂S, NH₃, and VOCs. Complies with EPA/CE standards for odor emissions.
Send Inquiry
Contact Us

Application

✔ Meat Processing: Rendering & cooking emissions ✔ Dairy Plants: Fermentation tank vent gas treatment ✔ Condiment Production: Soy sauce/brewing VOC abatement ✔ Breweries: Wort boiling & fermentation odor control

Working Princple

  1. Pre-treatment
    • Stainless steel ducts transport gases to a mist eliminator (oil removal＞85%)
  2. Biofiltration
    • 3-layer filter bed:
      • Upper: Composite media (lava rock+bamboo charcoal) for VOC adsorption
      • Middle: Specialized microbes (Thiobacillus/Nitrosomonas) for H₂S/NH₃ degradation
      • Lower: Slow-release nutrients for microbial sustainability
  3. Smart Trickling
    • Frequency-controlled spraying (2-5L/m³·h) with NPK-enriched solution
  4. Polishing
    • Optional activated carbon layer ensures odor concentration ≤800

Features

  • 🔸 Corrosion Resistance
  • 316L stainless steel + PP construction (pH 2-10 resistant)
  • 🔸 Energy Saving
  • Power consumption＜0.8kW·h/1000m³ (60% lower than chemical scrubbers)
  • 🔸 IoT Monitoring
  • Real-time tracking of H₂S/NH₃ levels and pressure drop
  • 🔸 Scalable Design
  • Modular units (2000-50000m³/h) with parallel operation capability
