Rotary Drum Screen

Rotary Drum Screen

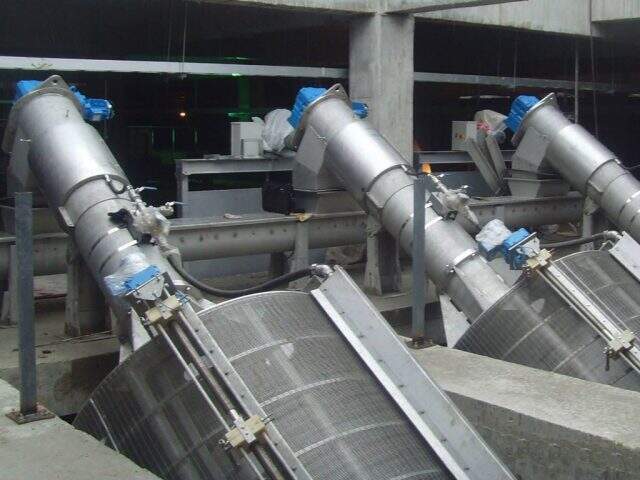

The rotary cleaning net cylinder makes a circular motion of 5~8r/min per minute at an inclination angle of 35° in the water, and 1/3 of the net cylinder is immersed in the water. Sewage and floating objects enter the interior of the mesh cylinder from the lower opening of the mesh cylinder, and the floating substances are attached to the inner wall of the mesh cylinder and taken out of the water. When the mesh cylinder turns to a high point, impurities fall into the garbage conveying system due to gravity, and are conveyed and squeezed to discharge mouth. The filtered sewage flows away through the gap of the mesh cylinder.
